GRV
GRV
Vinvicta Services is excited to announce that we are the Australian distributor for the Frenmch manufactured GRV SAS straddle tractor range.
3.3 EVO 75CV
3.3 EVO 140CV
Laboureur 56CV
Laboureur Evo DR
Vision 140CV

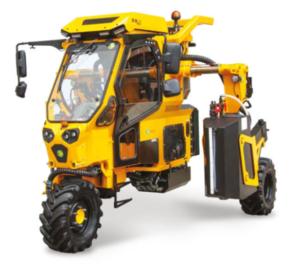

The GRV 3.3 Evo 75 CV is a French-built double-row vineyard straddle tractor designed for narrow vineyards, combining compact 75 hp power, hydrostatic three-wheel drive, high-flow hydraulics, variable track width and a Category IV cab for comfortable, safe operation.
|
Category |
Specification |
|
Model |
GRV 3.3 Evo 75 CV |
|
Application |
Compact double-row vineyard straddle tractor for narrow vineyards |
|
Engine |
Kohler, 4-cylinder, 2.50 L displacement |
|
Power |
75 hp |
|
AdBlue |
Not required |
|
Maximum engine speed |
2,600 rpm |
|
Fuel |
GNR or Bio Fuel EN14214 B10 |
|
Fuel tank |
75 L |
|
Transmission |
Hydrostatic, 3-wheel drive with Twin-lock anti-slip |
|
Driving features |
Forward pedal, cruise control, differential lock pedal, Eco-drive, Automotive and hydrostatic modes |
|
Maximum road speed |
25 km/h |
|
Maximum working speed |
10 km/h |
|
Hydraulic flow |
2 x 45 L/min at 2,500 rpm |
|
Hydraulic oil reservoir |
102 L |
|
Hydraulic controls |
10 tool memories; 8 double-acting electro-distributors, including 6 convertible to simple-acting with valves; joystick-controlled synchronisation; circuit decompression from screen |
|
Cabin |
Category IV cabin compliant with EN 15695, with butterfly doors, heating, air conditioning, joystick and touchscreen controls |
|
Chassis |
Monocoque |
|
Steering |
60° steering angle |
|
Variable track width |
800/1300 mm, 900/1400 mm or 1000/1500 mm |
|
Slope correction |
±250 mm by combined left/right tilting and lifting |
|
Under-beam height |
1,950 mm |
|
Unladen weight |
3,442 kg |
|
Wheelbase |
2,580 mm |
|
Overall length |
3,680 mm with rear lateral tool carrier |
|
Tyres |
AV 320/65 R16 and AR 320/65 R16; optional AV 425/55 R17 and AR 425/55 R17 |
|
Tool carriers |
Two front ventral pulled tool carriers; two front lateral pushed tool carriers; two rear lateral pulled tool carriers with track erasers; one rear central tool carrier with track-eraser lift |
|
Tank equipment |
Optional two 250 L front tanks or two 250 L side tanks |

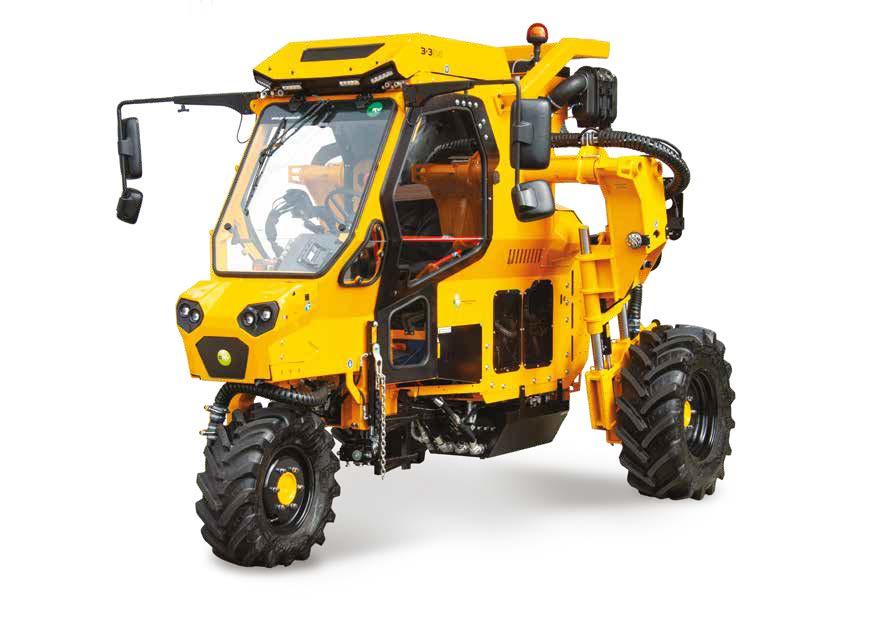

3.3 EVO 140CV
The GRV 3.3 Evo 140 CV is a French-built double-row vineyard straddle tractor designed for vineyards up to 2 m wide, combining 140 hp power, hydrostatic transmission, high hydraulic capacity, variable track width, cab comfort and multi-tool versatility.
Specifications:
|
Model |
GRV 3.3 Evo 140 CV |
|
Application |
Double-row vineyard straddle tractor for vines up to 2 m |
|
Engine |
Kohler, 4-cylinder, 3.40 L displacement |
|
Power |
140 hp |
|
Maximum engine speed |
2,200 rpm |
|
Fuel |
GNR or Bio Fuel EN14214 B10 |
|
Fuel tank |
79 L |
|
AdBlue tank |
16 L |
|
Transmission |
Hydrostatic, 3-wheel drive with Twin-lock anti-slip |
|
Driving features |
Forward pedal, cruise control, differential lock pedal, Eco-drive, Automotive and hydrostatic modes |
|
Maximum road speed |
25 km/h |
|
Maximum working speed |
10 km/h |
|
Hydraulic flow |
2 x 55 L/min + 40 L/min at 2,200 rpm |
|
Hydraulic oil reservoir |
120 L |
|
Hydraulic controls |
10 tool memories; 8 double-acting electro-distributors, including 6 convertible to single-acting; joystick-controlled synchronisation; circuit decompression from screen |
|
Cabin |
Category IV cabin compliant with EN 15695, with butterfly doors, heating, air conditioning, joystick and touchscreen controls |
|
Chassis |
Monocoque |
|
Steering |
70° steering angle; Click-Turn steering control available as an option |
|
Variable track width |
800/1300 mm, 900/1400 mm or 1000/1500 mm; optional extension 900/1900 mm |
|
Slope correction |
±250 mm by combined left/right tilting and lifting |
|
Under-beam height |
1,950 mm; high-chassis version 2,300 mm |
|
Unladen weight |
3,740 kg |
|
Wheelbase |
2,760 mm |
|
Overall length |
4,015 mm with rear lateral tool carrier |
|
Tyres |
AV 320/65 R16 and AR 320/70 R20; optional AV 425/55 R17 and AR 405/70 R20 |
|
Tool carriers |
Two front ventral pulled tool carriers; two front lateral pushed tool carriers; two rear lateral pulled tool carriers with track erasers; one rear central tool carrier with track-eraser lift |
|
Tank equipment |
Optional two 350 L front tanks or two 350 L side tanks |

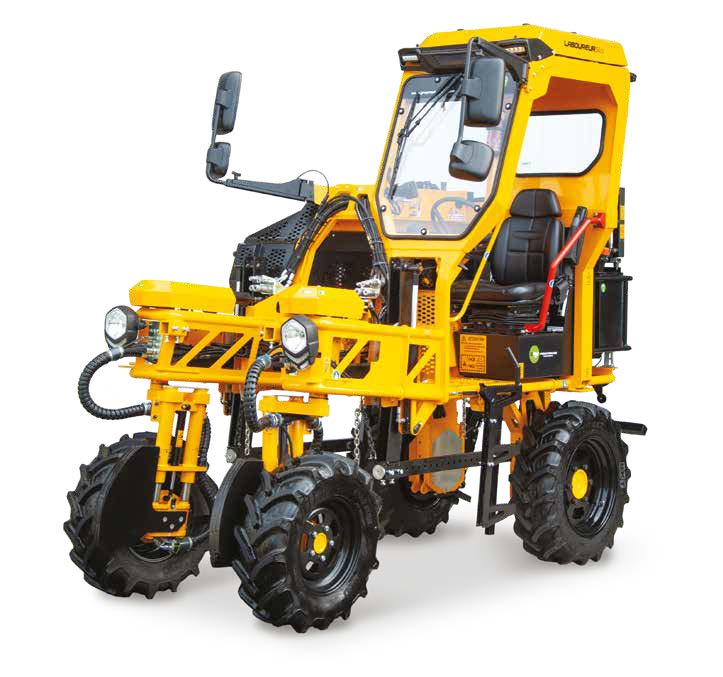

Laboureur 56CV
The GRV Laboureur 56 CV is a French-built ultra-light mono-row vineyard straddle tractor designed to reduce soil compaction while offering strong manoeuvrability, simple maintenance and versatile tool carrying capability.
Specificaitons:
| Model | GRV Laboureur 56 CV |
| Application | Ultra-light mono-row vineyard straddle tractor |
| Engine | Kohler, 3-cylinder, 1.90 L displacement |
| Power | 56 hp |
| AdBlue | Not required |
| Maximum engine speed | 2,600 rpm |
| Fuel | GNR or Bio Fuel EN14214 B10 |
| Fuel tank | 49 L |
| Driving control | Multifunction joystick |
| Transmission | Hydrostatic, 4-wheel drive with Twin-lock anti-slip |
| Differential lock | Differential lock pedal |
| Maximum road speed | 25 km/h |
| Maximum working speed | 10 km/h |
| Hydraulic flow | 2 x 45 L/min at 2,600 rpm |
| Hydraulic valves | 6 double-acting electro-distributors convertible to single-acting; optional 2 additional double-acting electro-distributors |
| Hydraulic reservoir | 67 L |
| Chassis | Monocoque; tubular trellis chassis described for compact strength and light weight |
| Front axle | Hydraulic balance beam, lockable and adjustable, with 300 mm travel |
| Cabin / operator station | Offset and lowered driving position with front windscreen for improved visibility |
| Steering | 3.50 m turning radius |
| Fixed track widths | 1,080 mm, 1,200 mm, 1,300 mm or 1,450 mm |
| Under-beam height | 1,850 mm |
| Unladen weight | 2,528 kg |
| Wheelbase | 2,196 mm |
| Overall length | 3,214 mm with rear lateral tool carrier |
| Tyres | Front 280/70 R16; rear 280/70 R20 |
| Tool carriers | Front parallelogram pulled tool carrier; two rear tool carriers with track-eraser lift and fixed square; two perforated tool bars |
| Tank equipment | Optional 150 L tank set |

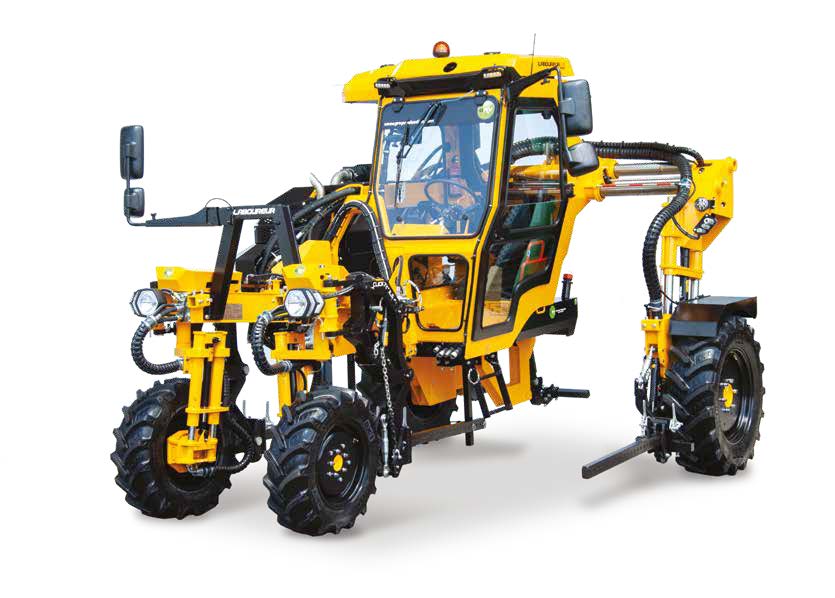

Laboureur Evo DR 75 CV
The GRV Laboureur Evo DR 75 CV is a French-built double-row vineyard straddle tractor with an offset, lowered cab, hydraulic variable track, compact 75 hp power and four-wheel hydrostatic drive for visibility, manoeuvrability, stability and precision in complex vineyards.
|
Category |
Specification |
|
Model |
GRV Laboureur Evo DR 75 CV |
|
Application |
Double-row vineyard straddle tractor for narrow and complex vineyards |
|
Engine |
Kohler, 4-cylinder, 2.50 L displacement |
|
Power |
75 hp |
|
AdBlue |
Not required |
|
Maximum engine speed |
2,600 rpm |
|
Fuel |
GNR or Bio Fuel EN14214 B10 |
|
Fuel tank |
63 L |
|
Transmission |
Hydrostatic, 4-wheel drive with Twin-lock anti-slip |
|
Driving features |
Forward pedal, cruise control, differential lock pedal, Eco-drive, Automotive and hydrostatic modes |
|
Additional transmission options |
Front axle suspension and front axle declutching valve available as options |
|
Maximum road speed |
25 km/h |
|
Maximum working speed |
10 km/h |
|
Hydraulic flow |
2 x 45 L/min at 2,500 rpm |
|
Hydraulic oil reservoir |
120 L |
|
Hydraulic controls |
10 tool memories; 8 double-acting electro-distributors, including 6 convertible to simple-acting with valves; joystick-controlled synchronisation; circuit decompression from screen |
|
Chassis |
Monocoque |
|
Cab / operator station |
Offset and lowered cab with windscreen, rear window and side window on engine side; optional closed Category IV cab compliant with EN 15695 |
|
Steering |
87° steering angle; optional Click-Turn steering control by stalk |
|
Variable track width |
Hydraulic variable rear track: fixed 1,080 mm front chassis with +600 mm rear adjustment, or fixed 1,200 mm front chassis with +700 mm rear adjustment |
|
Slope correction |
±250 mm on left side only |
|
Under-beam height |
1,850 mm |
|
Unladen weight |
3,650 kg |
|
Wheelbase |
2,675 mm |
|
Overall length |
3,803 mm with rear lateral tool carrier |
|
Tyres |
Standard front 280/70 R18 and rear 320/70 R24; optional front 320/65 R16, rear 405/70 R20 or low-pressure rear 380/70 R20 |
|
Tool carriers |
Front pulled Click-Tools tool carrier with GRV-patented parallelogram lift; pushed tool carrier on left rear wheel; two rear pulled tool carriers with track-eraser lift; two quick-coupling tool bars; optional rear central track-eraser tool carrier |
|
Tank equipment |
Optional 500 L mono-tank |

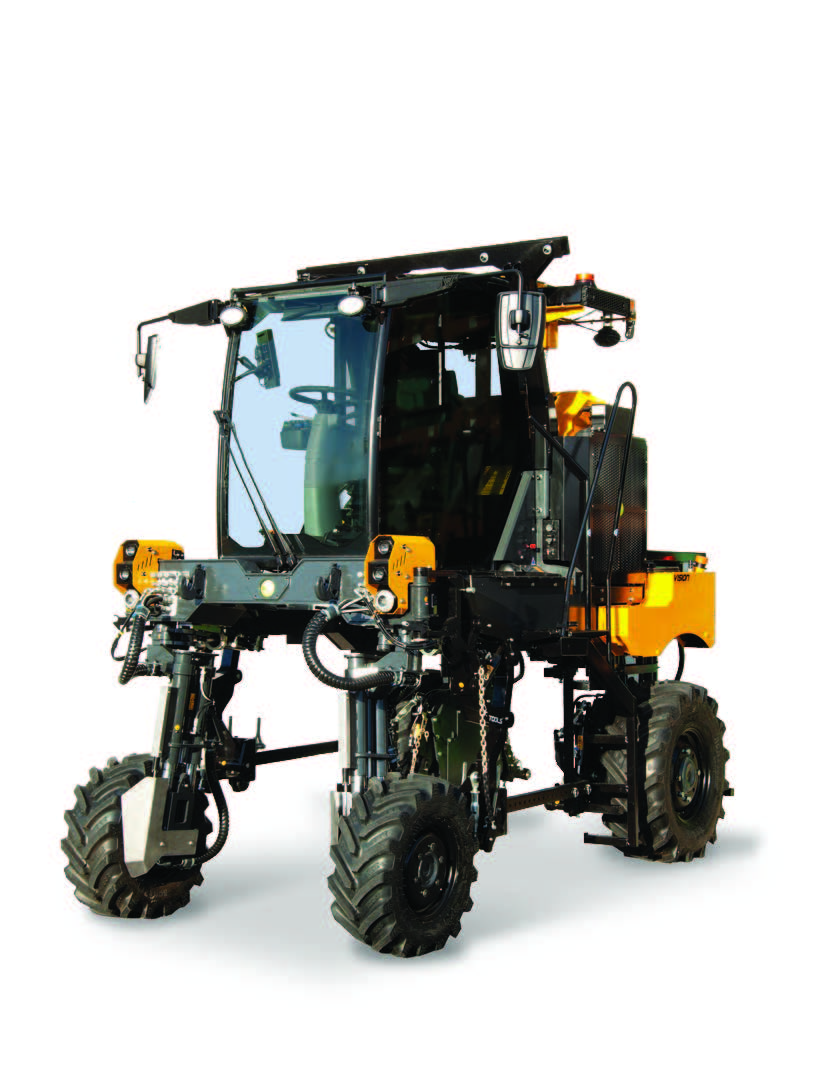

Vision 140CV
The GRV Vision 140 CV is a French-built mono-row vineyard straddle tractor introduced as a 2026 model, combining 140 hp power, four-wheel hydrostatic drive, premium cab comfort, high hydraulic capacity, Click-Tools compatibility and compact vineyard-focused dimensions.
|
Category |
Specification |
|
Model |
GRV Vision 140 CV |
|
Application |
Mono-row vineyard straddle tractor focused on productivity, manoeuvrability and operator comfort |
|
Engine |
Kohler, 4-cylinder, 3.40 L displacement |
|
Power |
140 hp |
|
AdBlue tank |
16 L |
|
Maximum engine speed |
2,200 rpm |
|
Fuel |
GNR or Bio Fuel EN14214 B10 |
|
Fuel tank |
110 L |
|
Transmission |
Hydrostatic, 4-wheel drive with Twin-lock anti-slip |
|
Driving features |
Pedal drive, cruise control, differential lock pedal, Eco-drive, Automotive and hydrostatic modes |
|
Additional transmission features |
Front axle suspension and front axle declutching valve |
|
Maximum road speed |
25 km/h |
|
Maximum working speed |
10 km/h |
|
Hydraulic flow |
2 x 55 L/min + 50 L/min at 2,200 rpm |
|
Hydraulic oil reservoir |
110 L |
|
Hydraulic controls |
10 tool memories; 8 proportional double-acting electro-distributors convertible to 8 simple-acting; synchronisation mode configurable from the screen via the armrest; hydraulic circuit decompression from screen |
|
Chassis |
Carrier chassis |
|
Cabin |
Premium Category IV cabin compliant with EN 15695, with panoramic visibility, heating, air conditioning, demisting, heated windscreen, sliding left-door window and touchscreen controls |
|
Steering |
87° steering angle |
|
Fixed track widths |
1,000 mm, 1,200 mm, 1,400 mm or 1,600 mm |
|
Under-beam height |
1,300 mm or 1,600 mm |
|
Slope correction |
±100 mm by combined left/right tilting and lifting at 1,300 mm height; ±150 mm by combined left/right tilting and lifting at 1,600 mm height |
|
Slip correction |
GRV slip corrector for maintaining trajectory |
|
Unladen weight |
4,730 kg |
|
Wheelbase |
2,750 mm |
|
Overall length |
3,997 mm with rear lateral tool carrier |
|
Tyres |
Standard front 280/80 R18 and rear 320/85 R24; optional front 320/65 R16, rear 405/70 R20 or low-pressure rear 380/70 R20 |
|
Tool carriers |
Front pulled Click-Tools tool carrier with GRV-patented parallelogram lift; two rear lateral pulled tool carriers with track erasers; two quick-coupling tool bars; optional two front lateral pushed tool carriers |
|
Equipment |
Platform with sideboards; optional two tanks or mono-tank |
|
Connectivity |
Remote connection to IQANGO for diagnostics, adjustment and maintenance |
Technical Information
To provide an accurate quotation for your needs, we will need your vineyard specifications.
Maintenance & Service
Vinvicta Services offer annual maintenance and breakdown support for all your equipment.
- Programmed maintenance schedule and quick response with breakdown support.
- A team of experienced technicians specialising in electrical and mechanical installation and service and breakdown requirements.
